Fiber-optic Splitter

Fiber-optic Splitter

A fiber-optic splitter, also known as a beam splitter, is based on a quartz substrate of an integrated waveguide optical power distribution device, similar to a coaxial cable transmission system. The optical network system uses an optical signal coupled to the branch distribution. The fiber optic splitter is one of the most important passive devices in the optical fiber link. It is an optical fiber tandem device with many input and output terminals, especially applicable to a passive optical network (EPON, GPON, BPON, FTTX, FTTH etc.) to connect the MDF and the terminal equipment and to branch the optical signal.


According to the principle, fiber optic splitters can be divided into Fused Biconical Taper (FBT) splitter and Planar Lightwave Circuit (PLC) splitters.Wave splitting involves dividing a light beam into multiple streams. The daughter streams can be equal or in some other ratio.


The FBT splitter is one of the most common. FBT splitters are widely accepted and used in passive networks, especially for instances where the split configuration is smaller (1x2, 1X4, 2x2, etc.). The FBT splitter uses two (or more) fibers. The fibers' coating layer is removed. Both fibers, at the same time, are stretched under a heating zone thus forming a double cone. This special waveguide structure allows control of the splitting ratio via controlling length of the fiber torsion angle and stretch.

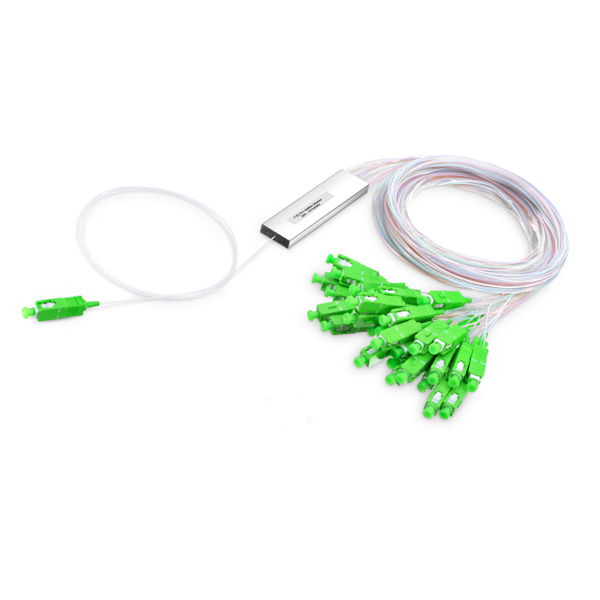

The PLC is a more recent technology. PLC splitters offer a better solution for larger applications. Waveguides are fabricated using lithography onto a silica glass substrate, which allows for routing specific percentages of light. As a result, PLC splitters offer accurate and even splits with minimal loss in an efficient package. The PLC splitter is a micro-optical element using photolithographic techniques to form optical waveguide at medium or semiconductor substrate for realizing branch distribution function.
