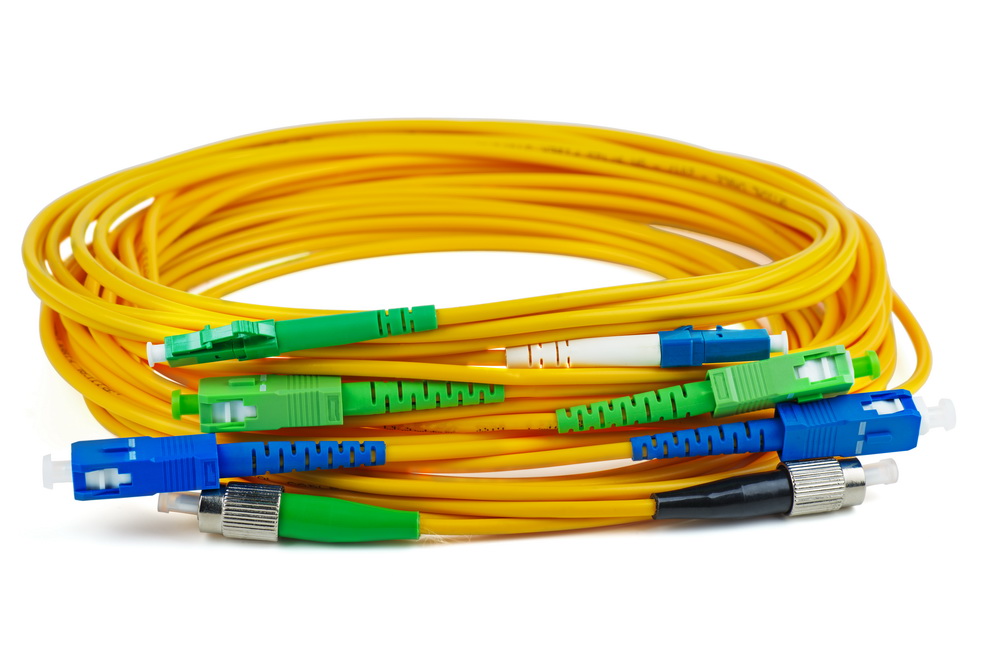

Fiber-optic Patch Cord
A fiber-optic patch cord is a fiber-optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch or other telecommunication equipment. Its thick layer of protection is used to connect the optical transmitter, receiver, and the terminal box. This is known as "interconnect-style cabling".
A fiber optic patch cord is constructed from a core with a high refractive index, surrounded by a coating with a low refractive index, that is strengthened by aramid yarns and surrounded by a protective jacket. Transparency of the core permits transmission of optic signals with little loss over great distances. The coating's low refractive index reflects light back into the core, minimizing signal loss. The protective aramid yarns and outer jacket minimizes physical damage to the core and coating.
Plating material | PVC, LSZH |
① Connector | FC,SC,ST,LC,MU,SMA,E2000... |
② Inserted core cover | PC,UPC or APC |
③ Connector | FC,SC,ST,LC,MU,SMA,E2000... |
④ Inserted core cover | PC,UPC or APC |
⑤ Type | SM or MM |
⑥ Line diameter (mm) | Ø3, Ø2, Ø1.6, Ø0.9 |
⑦ Length (m) | L=1.2.3.4.............meter |
⑧ Classification | SX or DX |
