Optical Transceiver

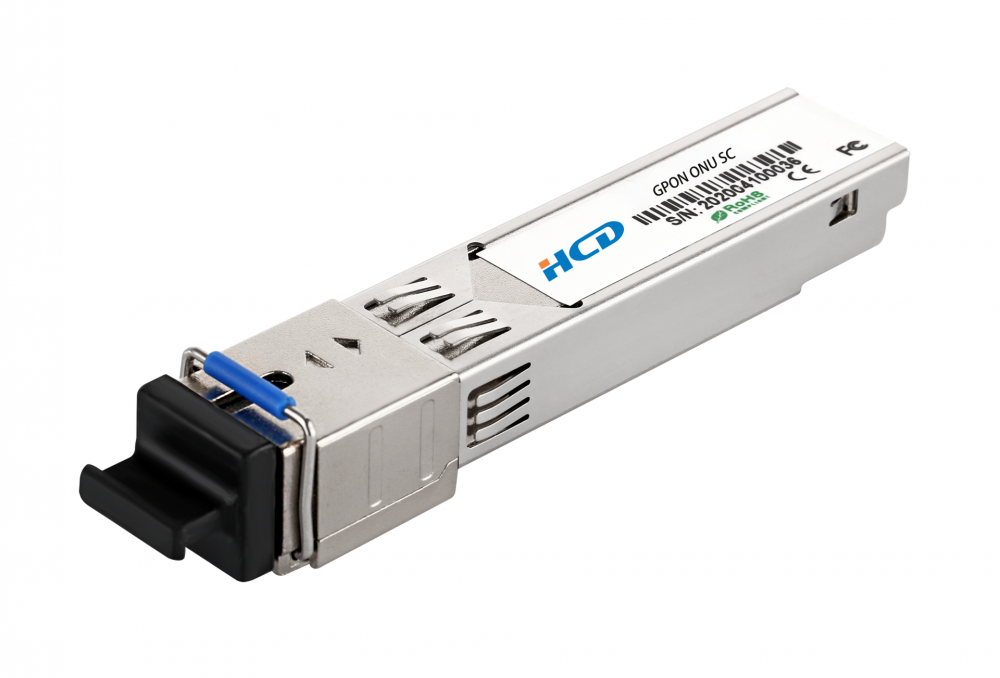

GPON ONU SFP

HCD’s GPON ONU SFP Module is designed for Gigabit-capable Passive Optical Network (GPON) transmission. GPON ONU SFP Module can fully support the Class B+ ODN application specified by the ITU-T G.984.2 standard and ITU-T G.984.5. The metallic package guarantees excellent EMI and EMC characteristics, which totally comply with international relevant standards.


Data RatePart numberPackage StyleWavelengthRx_LOS/SD signalConnectorTX_Burst signal
GPON ONU SFPH-GP1225-ONU-CLS SFP1310T/1490RRx_LOS High activeSCLow active
H-GP1225-ONU-CHS
SFP1310T/1490RRx_LOS High activeSC High active
H-GP1225-ONU-CLD SFP1310T/1490RRx_SD  High activeSCLow active
H-GP1225-ONU-CHD SFP1310T/1490RRx_SD  High activeSC High active
