Optical Transceiver
10G X2

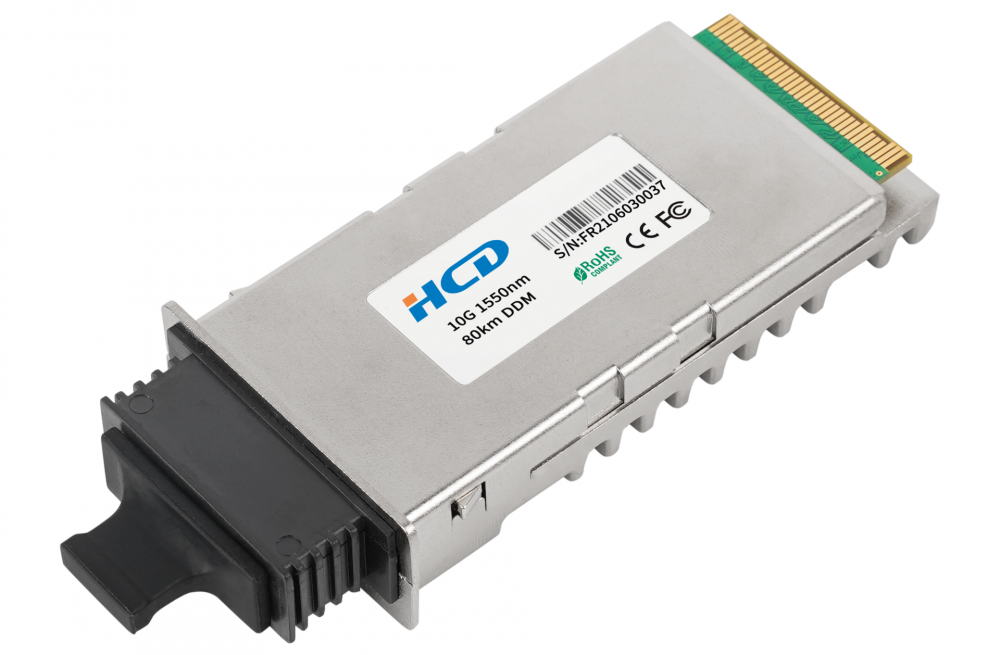

HCD's 10G X2 transceiver is a highly integrated, serial optical transceiver module for high-speed, 10Gbit/s data transmission applications. 10G X2 module is protocol-specific: Either 10G Ethernet or 10G Fibre Channel versions are available. X2 transponders are used in datacom optical links only (not telecom), and they are smaller than old generation XENPAK transponders. Its electrical interface to the host board is also standardized and is called XAUI (4 x 3.125 Gb/s).
| Data Rate | Part number | Package Style | Wavelength | Reach | Connector | Fiber Type |
| 10G X2 | H-X2-8510-02D | X2 | 850nm | 300M | SC | MM |
| H-X2-1310-10D | X2 | 1310nm | 10KM | SC | SM | |
| H-X2-1510-40/80D | X2 | 1550nm | 40/80KM | SC | SM |
