Optical Media Converter
Optical Media Converter

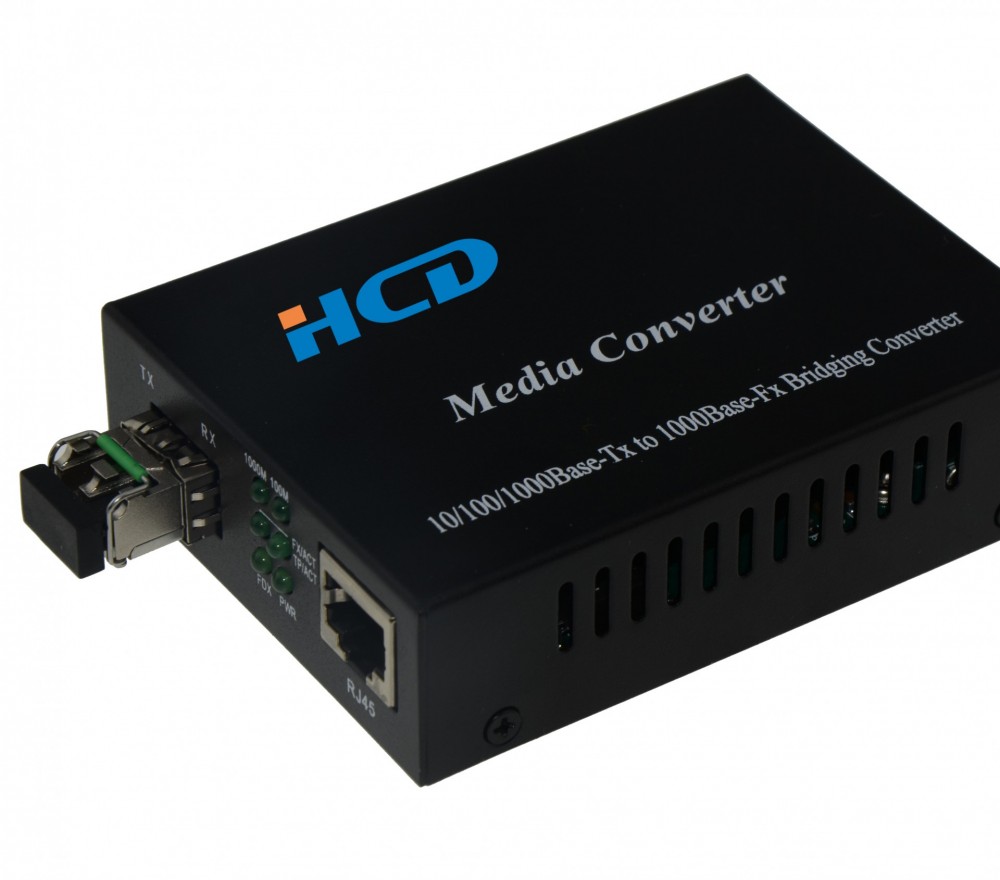

HCD offers 10/100M Ethernet media converters, gigabit media converters, SFP media converters, managed media converters, OEO fiber optic media converters, media converter cards, and media converter chassis. Fiber media converter can convert the signals sent from copper cable to signals that run on the fiber cable. There are copper to fiber and fiber-to-fiber conversion devices, and single mode fiber optic media converters and multimode fiber media converters.
| Part number | Description | |
| 10/100M Dual Fiber | H-100-MD-05 | 10/100MBase-Tx to 100Base-Fx, Multi Mode, 500M SC/ST/FC Optional |
| H-100-MD-02 | 10/100MBase-Tx to 100Base-Fx, Multi Mode, 2Km SC/ST/FC Optional | |
| H-100-SD-20 | 10/100MBase-Tx to 100Base-Fx, Singel Mode, 20Km SC/ST/FC Optional | |
| H-100-SD-40 | 10/100MBase-Tx to 100Base-Fx, Singel Mode, 40Km SC/ST/FC Optional | |
| H-100-SD-60 | 10/100MBase-Tx to 100Base-Fx, Singel Mode, 60Km SC/ST/FC Optional | |
| H-100-SD-80 | 10/100MBase-Tx to 100Base-Fx, Singel Mode, 80Km SC/ST/FC Optional | |
| H-100-SD-100 | 10/100MBase-Tx to 100Base-Fx, Singel Mode, 100Km SC/ST/FC Optional | |
| H-100-SD-120 | 10/100MBase-Tx to 100Base-Fx, Singel Mode, 120Km SC/ST/FC Optional | |
| 10/100M Single Fiber | H-100-BD-20A | 10/100MBase-Tx to 100Base-Fx, WDM, 20Km, Tx 1310, SC/ST/FC Optional |
| H-100-BD-20B | 10/100MBase-Tx to 100Base-Fx, WDM, 20Km, Tx 1550, SC/ST/FC Optional | |
| H-100-BD-40A | 10/100MBase-Tx to 100Base-Fx, WDM, 40Km, Tx 1310, SC/ST/FC Optional | |
| H-100-BD-40B | 10/100MBase-Tx to 100Base-Fx, WDM, 40Km, Tx 1550, SC/ST/FC Optional | |
| H-100-BD-60A | 10/100MBase-Tx to 100Base-Fx, WDM, 60Km, Tx 1310, SC/ST/FC Optional | |
| H-100-BD-60B | 10/100MBase-Tx to 100Base-Fx, WDM, 60Km, Tx 1550, SC/ST/FC Optional | |
| H-100-BD-80A | 10/100MBase-Tx to 100Base-Fx, WDM, 80Km, Tx 1490, SC/ST/FC Optional | |
| H-100-BD-80B | 10/100MBase-Tx to 100Base-Fx, WDM, 80Km, Tx 1550, SC/ST/FC Optional | |
| H-100-BD-100A | 10/100MBase-Tx to 100Base-Fx, WDM, 100Km, Tx 1490, SC/ST/FC Optional | |
| H-100-BD-100B | 10/100MBase-Tx to 100Base-Fx, WDM, 100Km, Tx 1550, SC/ST/FC Optional | |
| 10/100/1000M Dual Fiber | H-1000N-MD-05 | 10/100/1000MBase-Tx to 1000Base-Fx, Multi Mode, 500M SC/ST/FC Optional |
| H-1000N-SD-20 | 10/100/1000MBase-Tx to 1000Base-Fx, Singel Mode, 2Km SC/ST/FC Optional | |
| H-1000N-SD-40 | 10/100/1000MBase-Tx to 1000Base-Fx, Singel Mode, 20Km SC/ST/FC Optional | |
| H-1000N-SD-40 | 10/100/1000MBase-Tx to 1000Base-Fx, Singel Mode, 40Km SC/ST/FC Optional | |
| H-1000N-SD-60 | 10/100/1000MBase-Tx to 1000Base-Fx, Singel Mode, 60Km SC/ST/FC Optional | |
| H-1000N-SD-80 | 10/100/1000MBase-Tx to 1000Base-Fx, Singel Mode, 80Km SC/ST/FC Optional | |
| 10/100/1000M Single Fiber | H-1000N-BD-20A | 10/100/1000MBase-Tx to 1000Base-Fx, WDM, 20Km, Tx 1310, SC/ST/FC Optional |
| H-1000N-BD-20B | 10/100/1000MBase-Tx to 1000Base-Fx, WDM, 20Km, Tx 1550, SC/ST/FC Optional | |
| H-1000N-BD-40A | 10/100/1000MBase-Tx to 1000Base-Fx, WDM, 40Km, Tx 1310, SC/ST/FC Optional | |
| H-1000N-BD-40B | 10/100/1000MBase-Tx to 1000Base-Fx, WDM, 40Km, Tx 1550, SC/ST/FC Optional | |
| H-1000N-BD-60A | 10/100/1000MBase-Tx to 1000Base-Fx, WDM, 60Km, Tx 1490, SC/ST/FC Optional | |
| H-1000N-BD-60B | 10/100/1000MBase-Tx to 1000Base-Fx, WDM, 60Km, Tx 1550, SC/ST/FC Optional | |
| H-1000N-BD-80A | 10/100/1000MBase-Tx to 1000Base-Fx, WDM, 80Km, Tx 1490, SC/ST/FC Optional | |
| H-1000N-BD-80B | 10/100/1000MBase-Tx to 1000Base-Fx, WDM, 80Km, Tx 1550, SC/ST/FC Optional | |
| SFP Port | H-100N-11-SFP | 10/100MBase-Tx to 100Base-Fx, GE SFP Port |
| H-1000N-11-SFP | 10/100/1000MBase-Tx to 1000Base-Fx, GE SFP Port |
