AOC

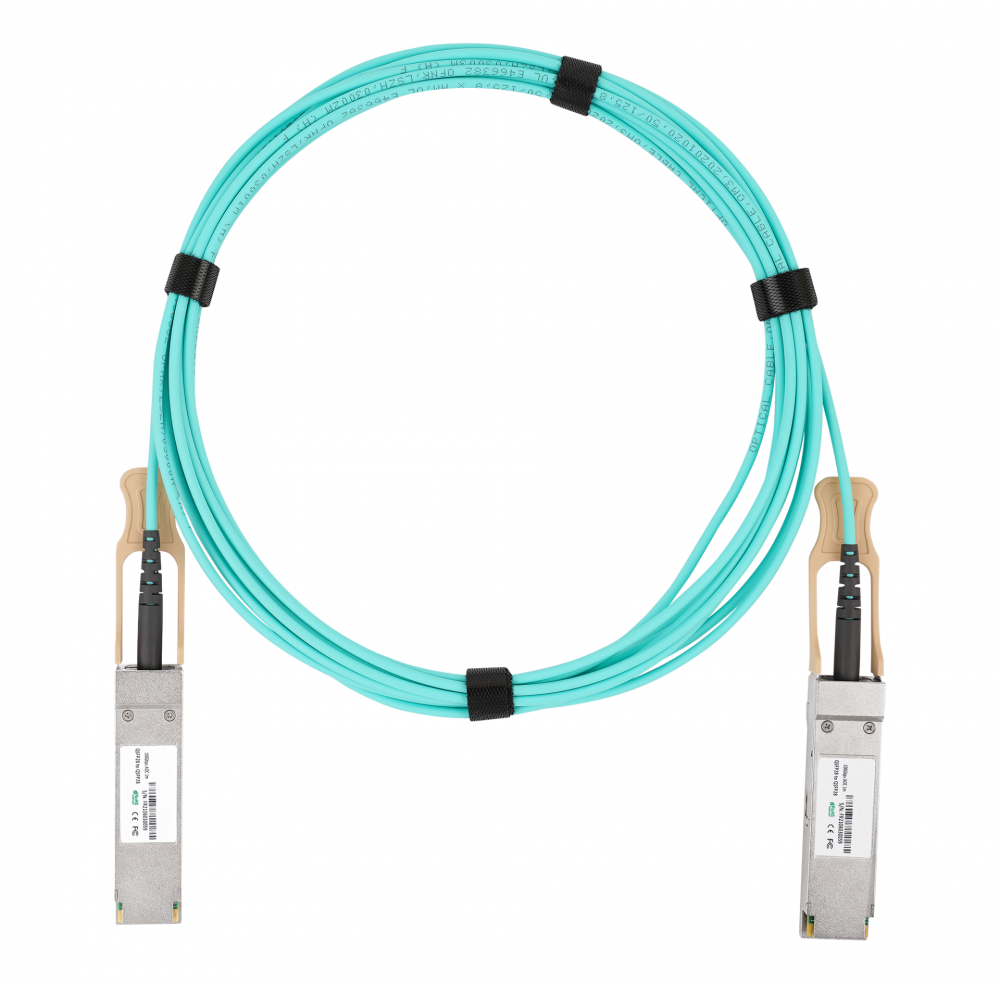

100G QSFP28 AOC
HCD’s 100G QSFP28 AOCs provide an affordable low-power alternative to interconnect 100G QSFP28 ports in data center applications up to 100m. In particular, these AOCs are ideal for simplifying inter- and intra-rack configurations. These AOCs come complete with durable polymer pull tabs for ease of removal.
| Data Rate | Part number | Package Style | Wave(nm) | Reach | Transmitter | Receiver |
| 100G | TA-A7DM3-X | QSFP28 | 850nm | 1m,2m,3m,5m,10m,20m,30,50m,100m | VCSEL | PIN |
| 100G | TA-A7DM3-X | QSFP28 | 851nm | Other distances except above | VCSEL | PIN |
| 100G | TA-A8DM3-X | QSFP28 to 4× SFP28 | 850nm | 1m,2m,3m,5m,10m,20m,30,50m,100m | VCSEL | PIN |
| 100G | TA-A8DM3-X | QSFP28 to 4× SFP28 | 851nm | Other distances except above | VCSEL | PIN |
