DAC

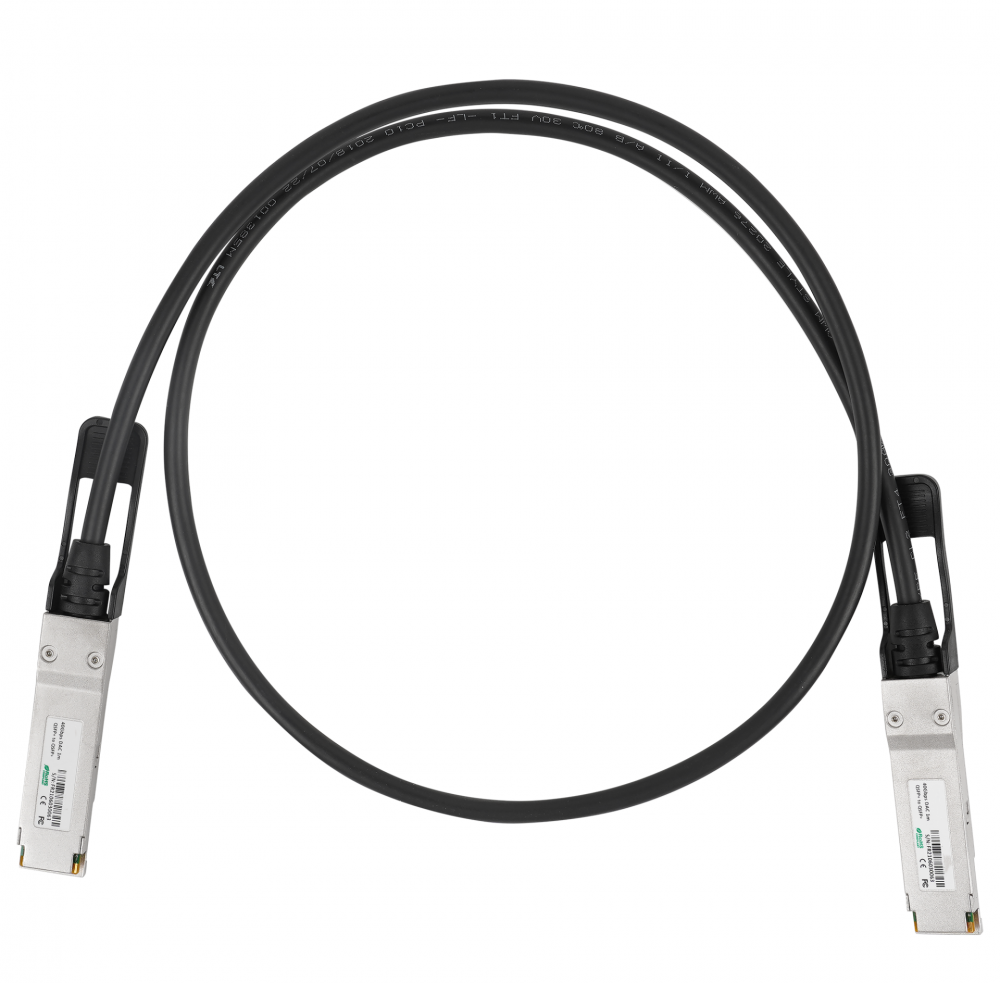

40G QSFP+ DAC
HCD's 40G QSFP+ PCC (Passive Copper Cable), also known as Direct Attach Copper (DAC) cable or Twinax cable, provides robust connections for 40G Ethernet systems. Each cable consists of four lanes each operating at data rates of up to 10Gb/s.
| Data Rate | Part number | Package Style | Reach | Wrie Gauge | Description |
| 40G | TA-P4C30-X | QSFP+ | 0.5m~3m | 30 AWG | Customized 40Gbps QSFP+ Passive DAC |
| 40G/4x10G | TA-P5C30-X | QSFP+/4xSFP+ | 0.5m~3m | 30 AWG | Customized 40Gbps QSFP+ to 4xSFP+ Passive DAC |
| 40G/4x10G | TA-P5C30-X | QSFP+/4xSFP+ | 5m | 26 AWG | Customized 40Gbps QSFP+ to 4xSFP+ Passive DAC |
| 40G/4x10G | TA-P5C30-X | QSFP+/4xSFP+ | 7m | 24 AWG | Customized 40Gbps QSFP+ to 4xSFP+ Passive DAC |
| 40G/10.3G | TA-P3C30-X | QSFP+/SFP+ | 0.5m~5m | 24 AWG | Customized 40Gbps QSFP+ to 1x10G SFP+ DAC Passive DAC |
Can Not Find What You Need? Contact Us Now!
