DAC
100G QSFP28 DAC

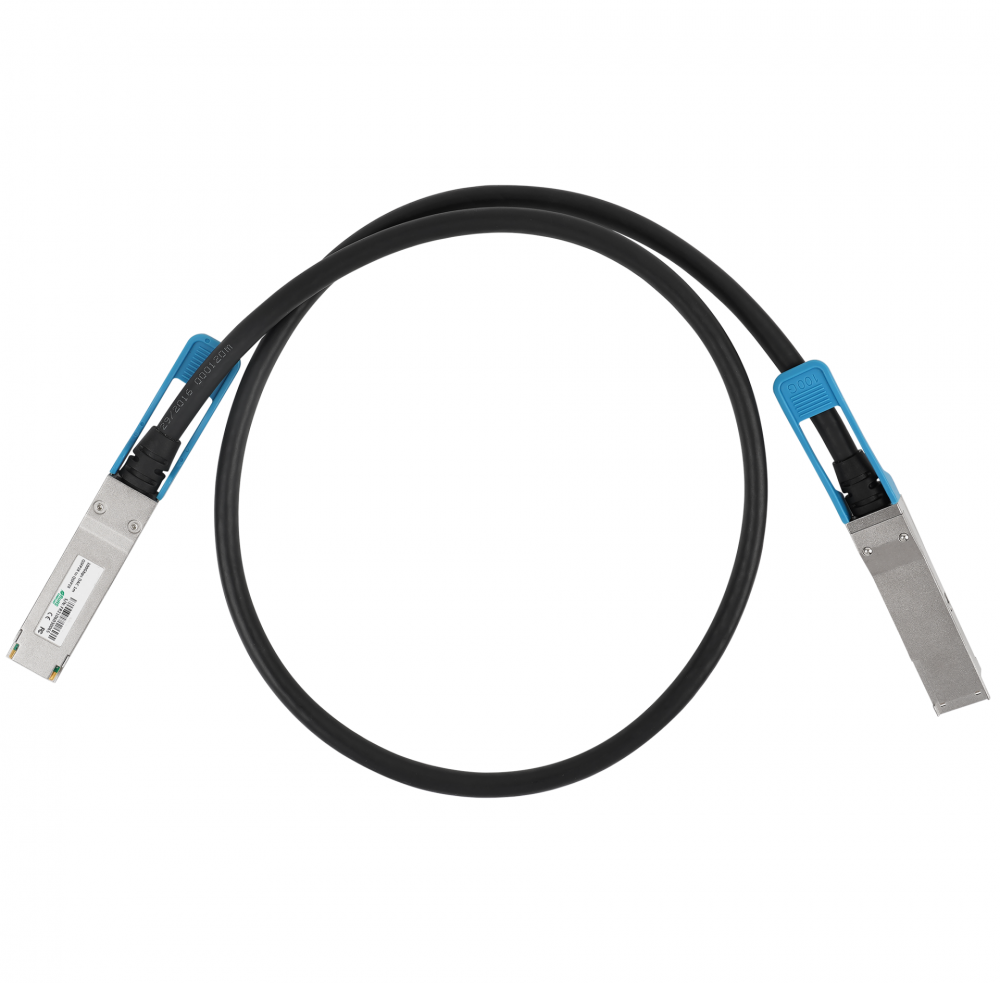

HCD's 100G QSFP28 PCC (Passive Copper Cable), also known as Direct Attach Copper (DAC) cable or Twinax cable, provides robust connections for 100G Ethernet and InfiniBand systems. Each cable consists of four lanes each operating at data rates of up to 25Gb/s.
| Data Rate | Part number | Package Style | Reach | Wrie Gauge | Description |
| 100G | TA-P7D30-X | QSFP28 | 0.5m~3m | 30 AWG | Customized 100Gbps QSFP28 Passive DAC |
| 100G | TA-P7D30-X | QSFP28 | 4m~5m | 26 AWG | Customized 100Gbps QSFP28 Passive DAC |
| 100G | TA-PAD30-X | QSFP28/SFP28 | 0.5m~2m | 30 AWG | Customized 100Gbps QSFP28 to 4xSFP28 Passive DAC |
| 100G | TA-PAD30-X | QSFP28/SFP28 | 3m~5m | 26 AWG | Customized 100Gbps QSFP28 to 4xSFP28 Passive DAC |
