QSFP+
The Quad (4-channel) Small Form-factor Pluggable (often abbreviated as QSFP) is a compact, hot-pluggable transceiver used for data communications applications. It interfaces a network device motherboard (for a switch, router, media converter or similar device) to a fiber optic cable. It is a new Multi-Source Agreement (MSA) for high speed application, such as 40G-BASE, which provide four channels of data in one pluggable interface. Each channel is capable of transferring data at 10Gbps and supports a total of 40Gbps.
The 40Gbps QSFP+ transceiver is well suited for Infiniband and 40GBASE-SR4 / 40GBASE-LR4 applications. It combines the higher density attractions of parallel modules with some of the key advantages normally associated with SFP+ based modules. It is intended for use short reach applications in switches, routers and data center equipment where it provides higher density and lower cost when compared with standard SFP+ modules.
The following list is our QSFP modules range. If you don't know how to choose,please feel free to contact us.
The 40Gbps QSFP+ transceiver is well suited for Infiniband and 40GBASE-SR4 / 40GBASE-LR4 applications. It combines the higher density attractions of parallel modules with some of the key advantages normally associated with SFP+ based modules. It is intended for use short reach applications in switches, routers and data center equipment where it provides higher density and lower cost when compared with standard SFP+ modules.
The following list is our QSFP modules range. If you don't know how to choose,please feel free to contact us.
-

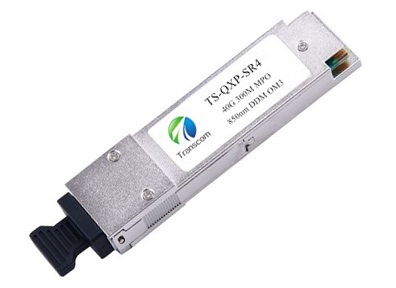

Part Number Package Data Rate Reach Wavelength Connector Datasheet TS-QXP-SR4 QSFP 40Gbp/s 100m 850nm MPO
TS-QXP-LR4 QSFP 40Gbp/s 10km 1271-1331nm LC
